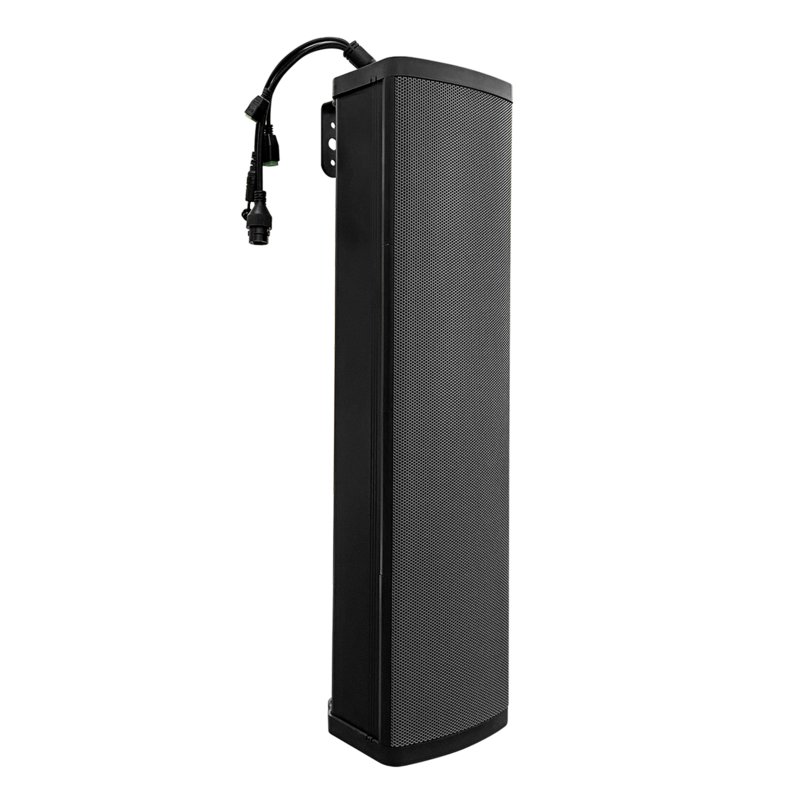

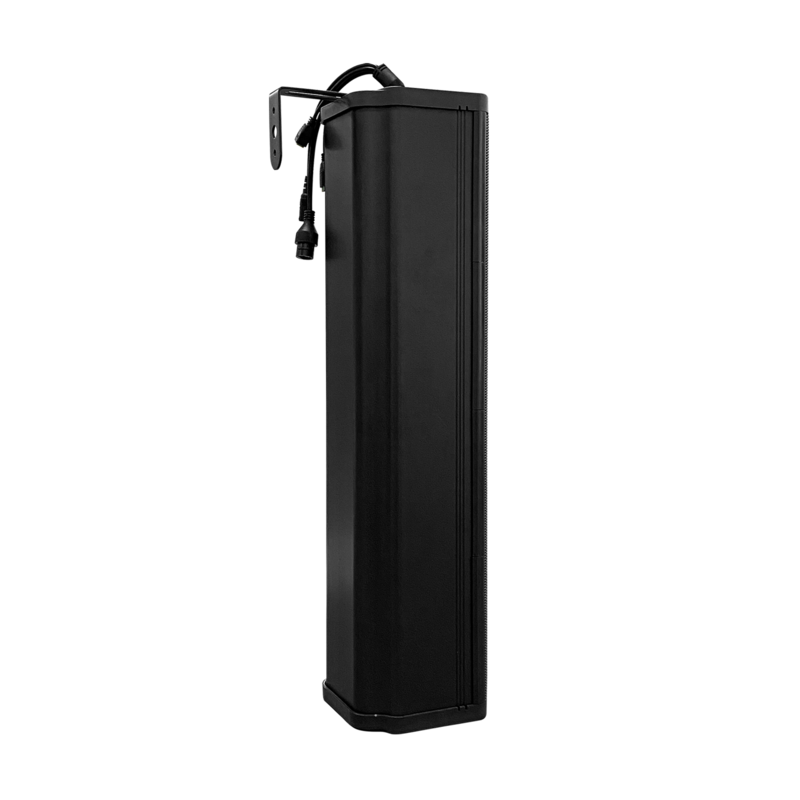

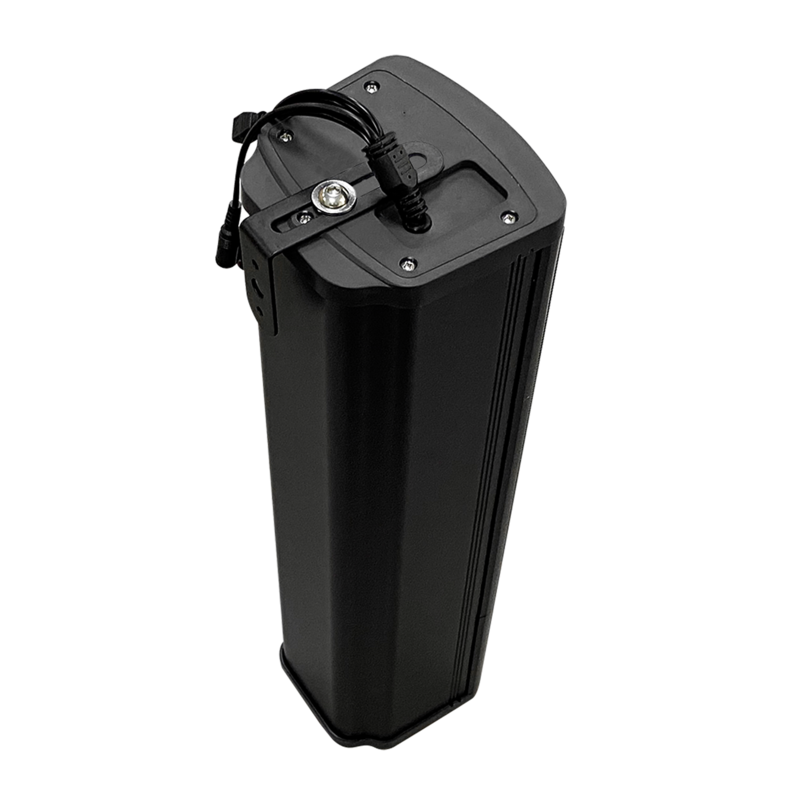

Network Speaker
L8160
Professional Network Column Speaker
SIP 2.0 ONVIF IP65
L8160 60W IP Column Speaker, IP65 rated with adjustable mounting angle, offering high-intelligibility IP paging, emergency alerting and loud ringing at lower system cost. Equipped with dry contact input and output, 48K OPUS audio, triple SIP accounts and HTTP API for security and paging integration.
Dry contact output and input for external system integration
IP65 weatherproof enclosure for outdoor & harsh environment deployment
48K OPUS audio for high-intelligibility voice broadcast
Triple SIP accounts for flexible paging and alert deployment
DC24V power input via external power adapter
HTTP API available for custom integration with security platforms
Detailed Specifications
| Model | L8160 |
| Amplifier | Built-in 60W Amplifier |
| Protection Rating | IP65 Waterproof |
| Frequency Range | 100Hz - 18KHz |
| Max Sound Pressure | 106dB |
| Audio Encoding | 48K OPUS, G.711a/u, G.722 |
| SIP Accounts | 3 Accounts |
| Power Supply | DC 24V 3A |
| Protocol Support | SIP 2.0, ONVIF, HTTP API, TCP/IP |
| Interface | 1x RJ45,2x3.81mm Phoenix terminal (Dry Contact, Key),1x DC Female interface |
