Network Speaker
W8215

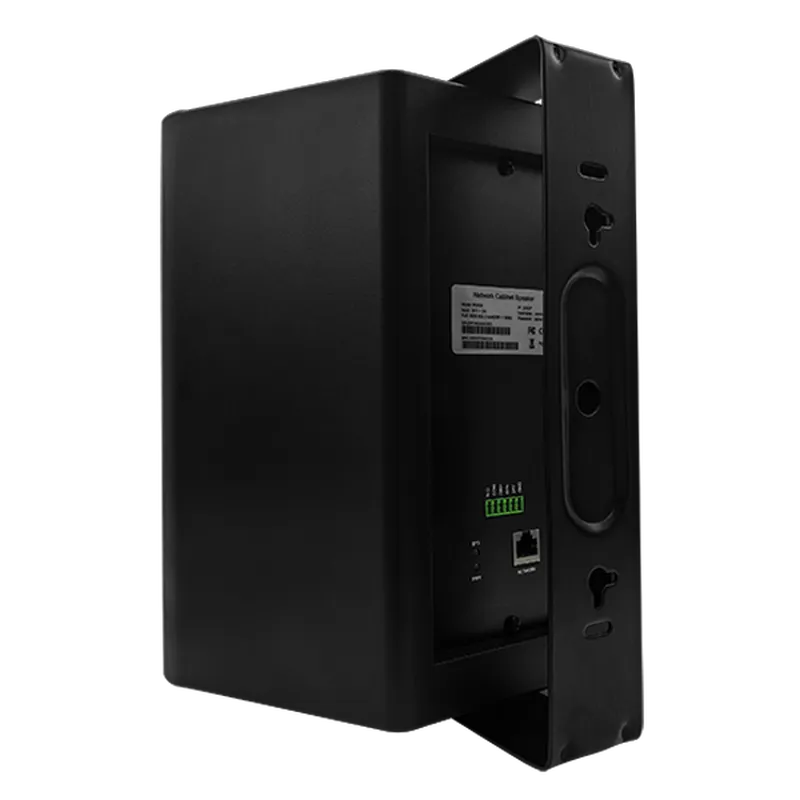

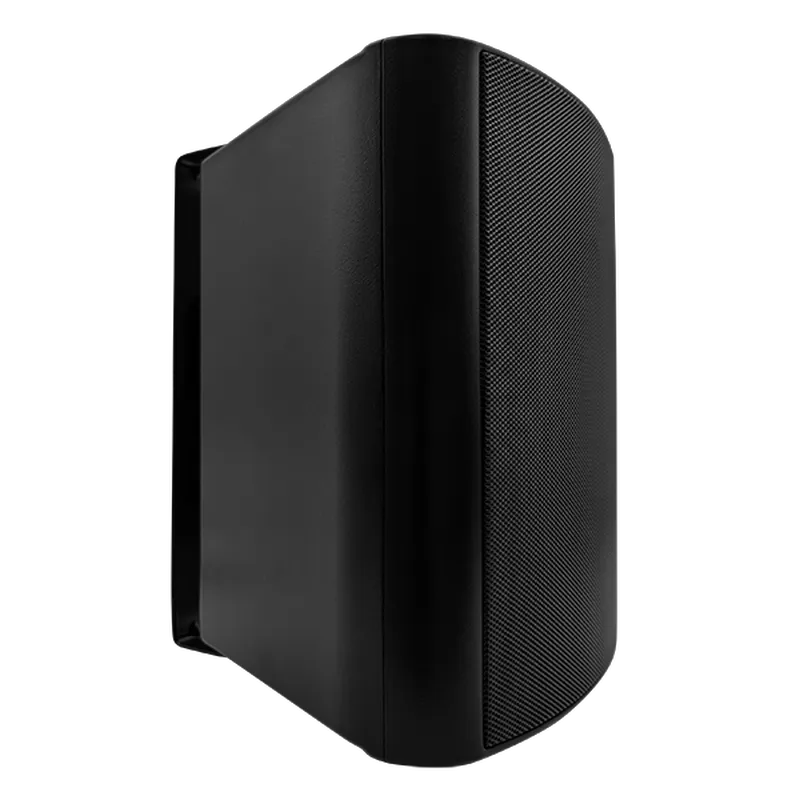

Professional Network Cabinet Speaker
SIP2.0 ONVIF PoE+
W8215 15W PoE IP Cabinet Speaker with Satellite Speaker Technology, offering high-intelligibility IP paging, emergency alerting and loud ringing at lower system cost. Equipped with dry contact input and output, 48K OPUS audio, triple SIP accounts and HTTP API for security and paging integration
Dry contact output and input for external system integration
Supports connection of one passive satellite speaker to extend audio coverage
48K OPUS audio for high-intelligibility voice broadcast
Triple SIP accounts for flexible paging and alert deployment
PoE powered (IEEE 802.3af/at), optional DC24V power supply
HTTP API available for custom integration with security platforms
Detailed Specifications
| Model | W8215 |
| Amplifier | Built-in 15W amplifier |
| Frequency Range | 100Hz-20KHz |
| Max Sound Pressure | 104dB |
| Audio Encoding | 48K OPUS,G.711 a/ u,G.722 |
| SIP Accounts | 3 Accounts |
| Power Supply | PoE (IEEE802.3af/at ) or DC 24V 2A |
| Protocol Support | SIP(RFC3261), ONVIF,HTTP API, TCP/IP |

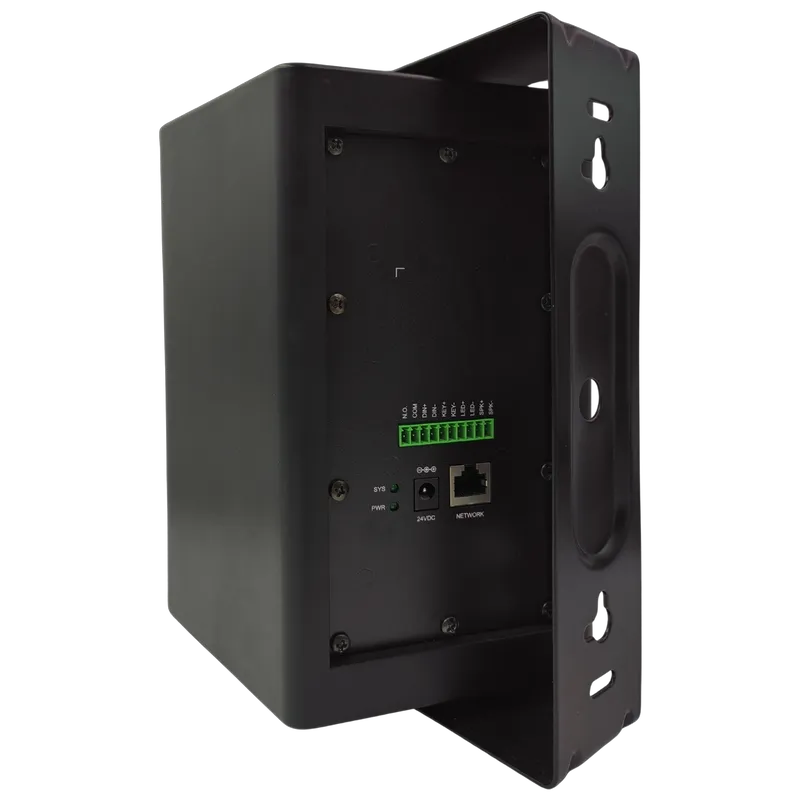

| Interface | 1x RJ45(POE),1x 10-pin 3.5mm Phoenix terminal (Dry Contact, Key, Key Indicator, Satellite speaker),1x DC Female interface |
