Network Ceiling Speakers
C8115

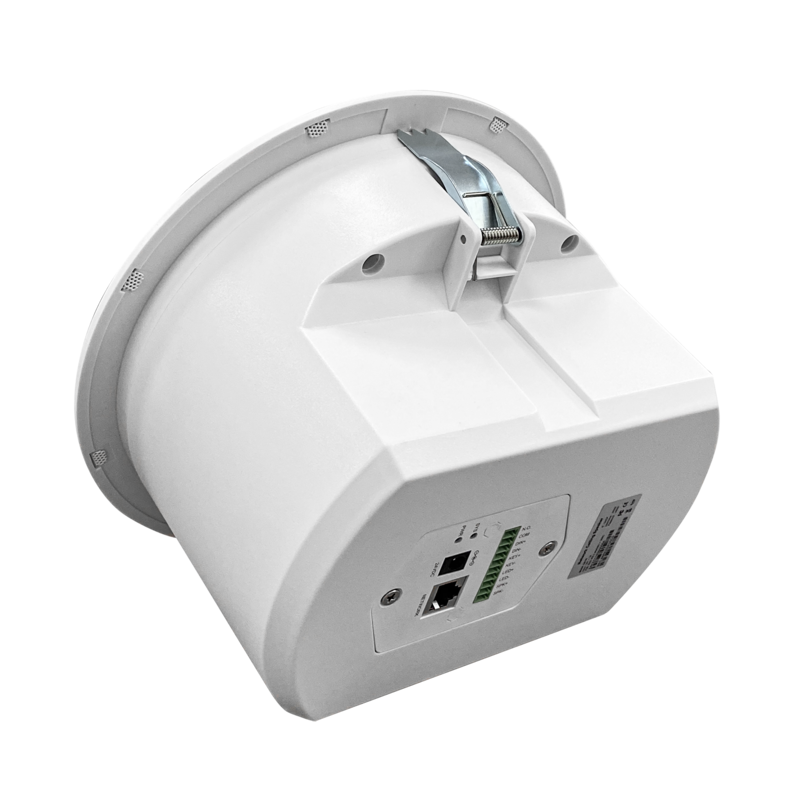

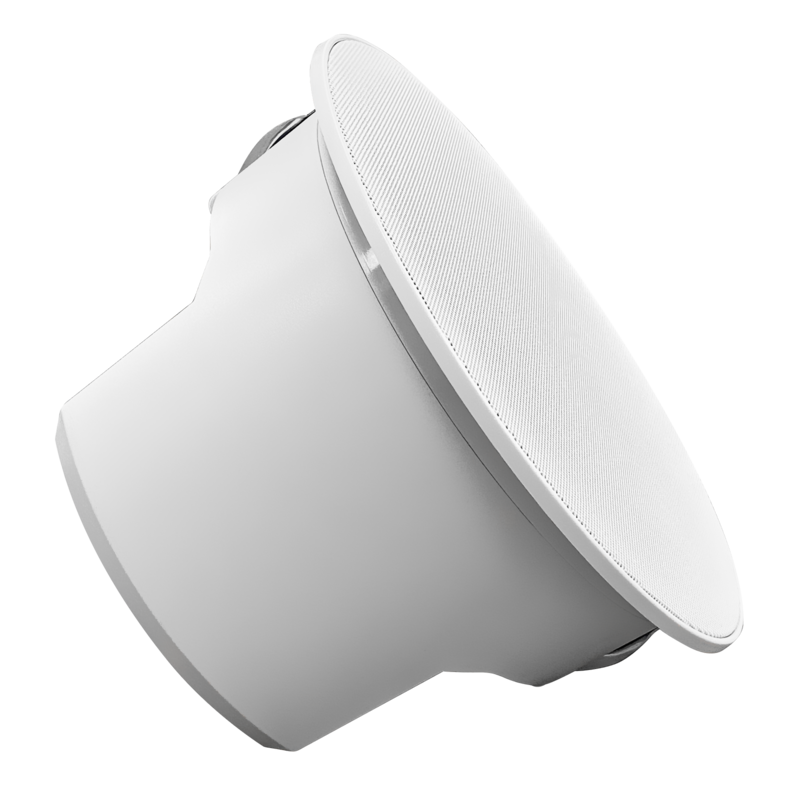

Professional Network Ceiling Speaker
SIP 2.0 PoE+ ONVIF
Powerful C8115 15W Network Ceiling Speaker. Supports PoE, triple SIP accounts, and HTTP API integration for professional IP paging systems.
Max SPL 109dB
Audio Codec 48K OPUS
- Dual Power Options: Standard PoE or DC 24V 2A external power supply.
- Master-Slave Extension: Support for connecting an external 8Ω 15W passive sub-speaker.
- Triple SIP Accounts: High flexibility for VoIP system registration and paging.
High-Fidelity Audio
Featuring a built-in 15W amplifier with a broad frequency range (60Hz to 17KHz), ensuring crystal clear paging and background music.
Seamless Integration
Fully compatible with standard SIP phone systems and VMS via ONVIF. Supports HTTP API for advanced alarm transmission.
Flexible Hardware
Designed for versatile deployment with PoE support and the ability to drive a passive sub-speaker, reducing installation costs.
Detailed Specifications
| Model | C8115 |
| Amplifier | Built-in 15W Class-D Amplifier |
| Frequency Range | 60Hz - 17KHz |
| Max Sound Pressure | 109dB |
| Power Supply | PoE (802.3af/at) or DC 24V 2A |
| SIP Accounts | 3 Accounts |
| Audio Encoding | 48K OPUS, G.711, G.722 |

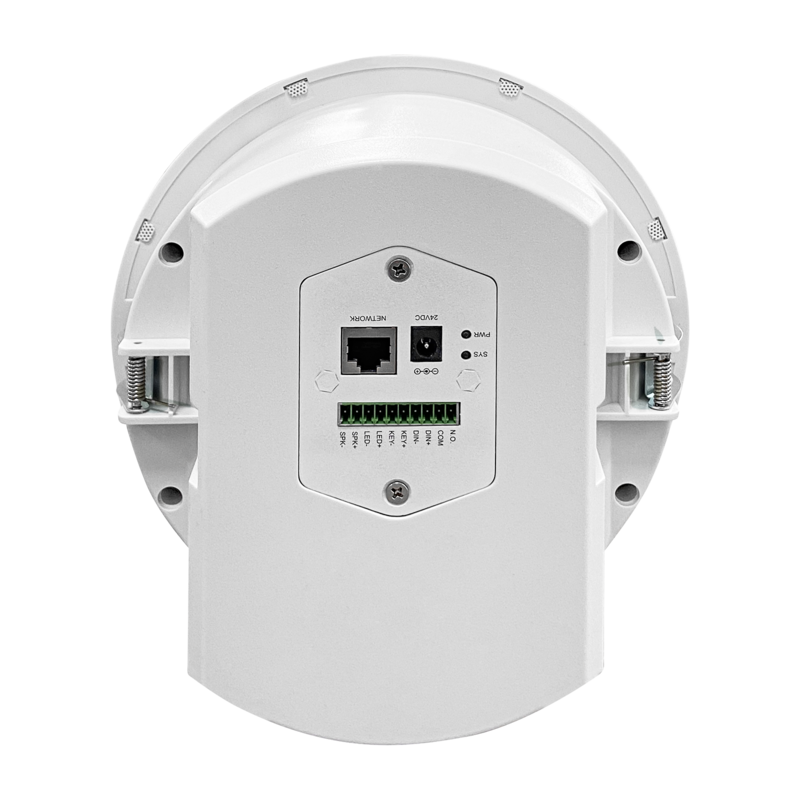

| Interface | RJ45, DC Jack, External 8Ω Output |
Looking for a customized hardware version?
We support OEM/ODM requests including custom LOGO, PCB redesign, and specific feature adaptation.
Start My Project
