Network Column Speakers

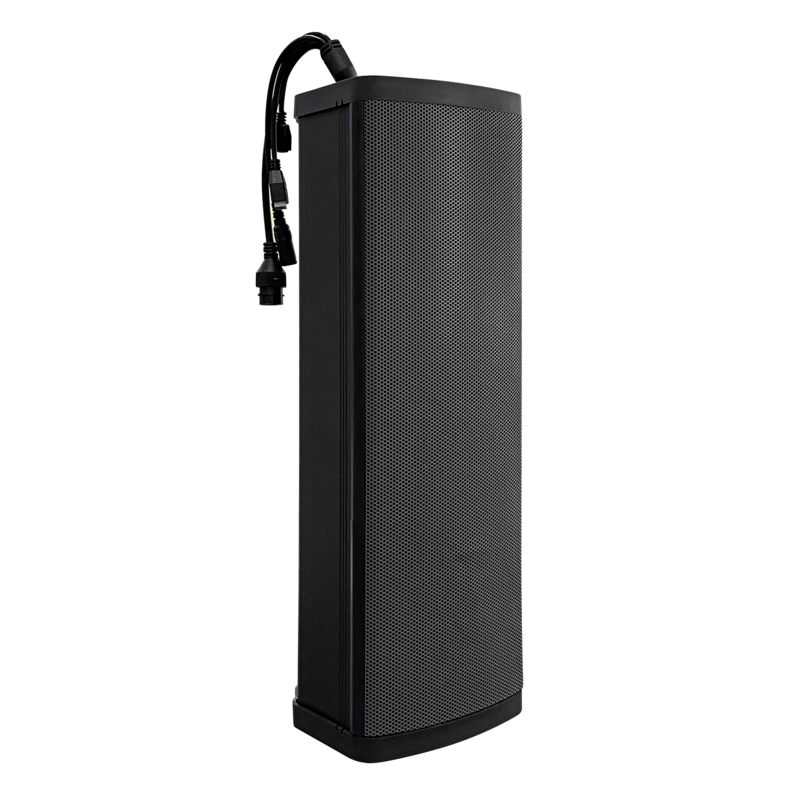

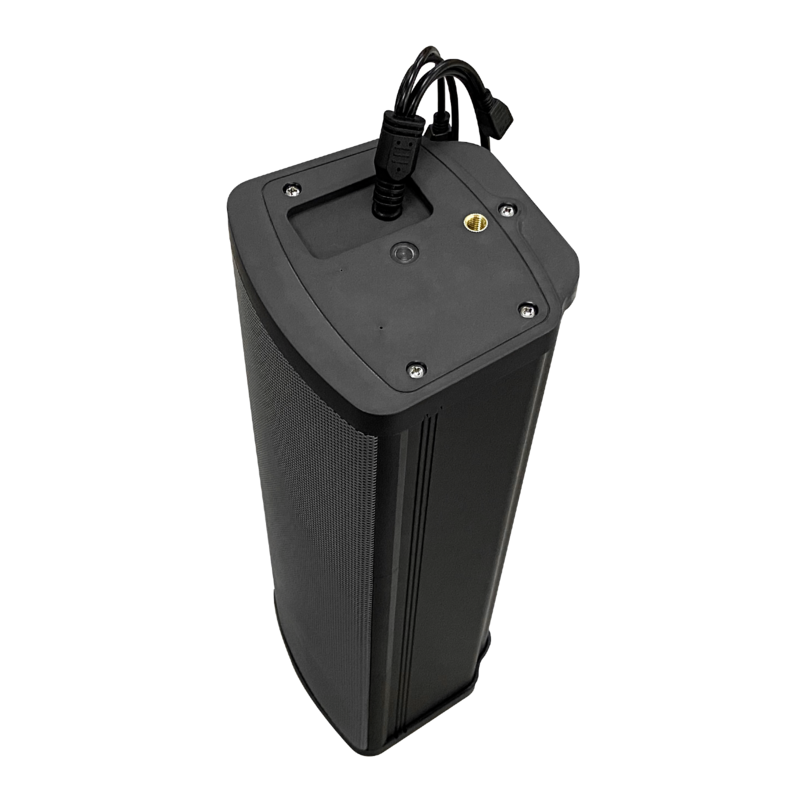

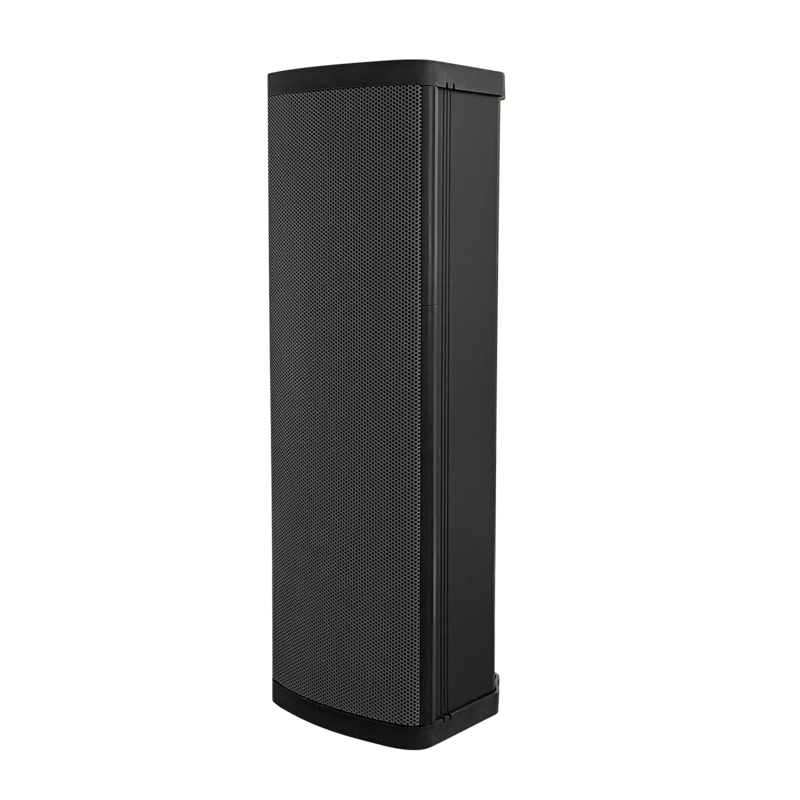

L8130
Professional Network Column Speaker
IP65 SIP 2.0 PoE+ ONVIF 30W
L8130 High-Fidelity 30W Network Column Speaker. Supports PoE, triple SIP accounts, and HTTP API integration. Ideal for parks, stations, and outdoor venues.
Sound Pressure 104dB Max
Frequency 100Hz - 18KHz
Max SPL 104dB
- Weatherproof Design: IP65 protection rating with superior thermal durability for harsh environments.
- Advanced Encoding: Supports 48K OPUS high-quality audio for crystal-clear announcements.
- Flexible Power: Supports standard PoE (802.3af/at) or external DC 24V 2A supply.
Outdoor Excellence
Built with high-quality materials to withstand rain, dust, and temperature fluctuations. Ideal for railway stations, parks, and squares.
Open Integration
Fully compatible with VMS via ONVIF and standard SIP phone systems. Supports HTTP API for easy custom integration.
Powerful Coverage
Equipped with a 30W high-efficiency amplifier. Designed for long-distance sound projection and high intelligibility.
Detailed Specifications
| Model | L8130 |
| Amplifier | Built-in 30W Amplifier |
| Protection Rating | IP65 Waterproof |
| Frequency Range | 100Hz - 18KHz |
| Max Sound Pressure | 104dB |
| Audio Encoding | 48K OPUS, G.711a/u, G.722 |
| SIP Accounts | 3 Accounts |
| Power Supply | PoE (IEEE 802.3af/at) or DC 24V 2A |
| Protocol Support | SIP 2.0, ONVIF, HTTP API, TCP/IP |
Looking for a customized hardware version?
We support OEM/ODM requests including custom LOGO, PCB redesign, and specific feature adaptation.
